Upgraded intake for an off grid hydro site

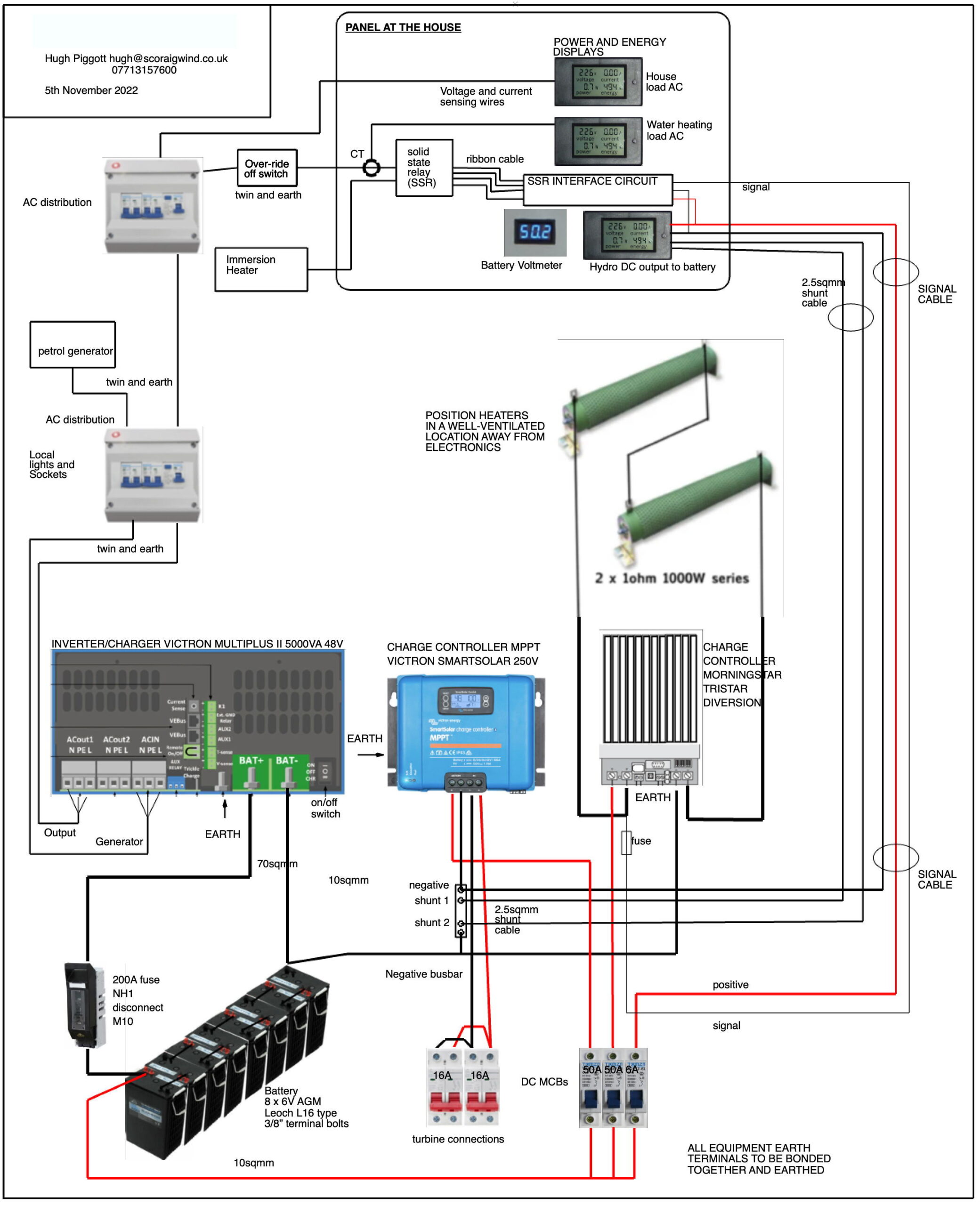

wiring diagram

The electrical system includes an MPPT controller for the hydro input and a diversion load controller to keep the turbines on load when the battery is full.
